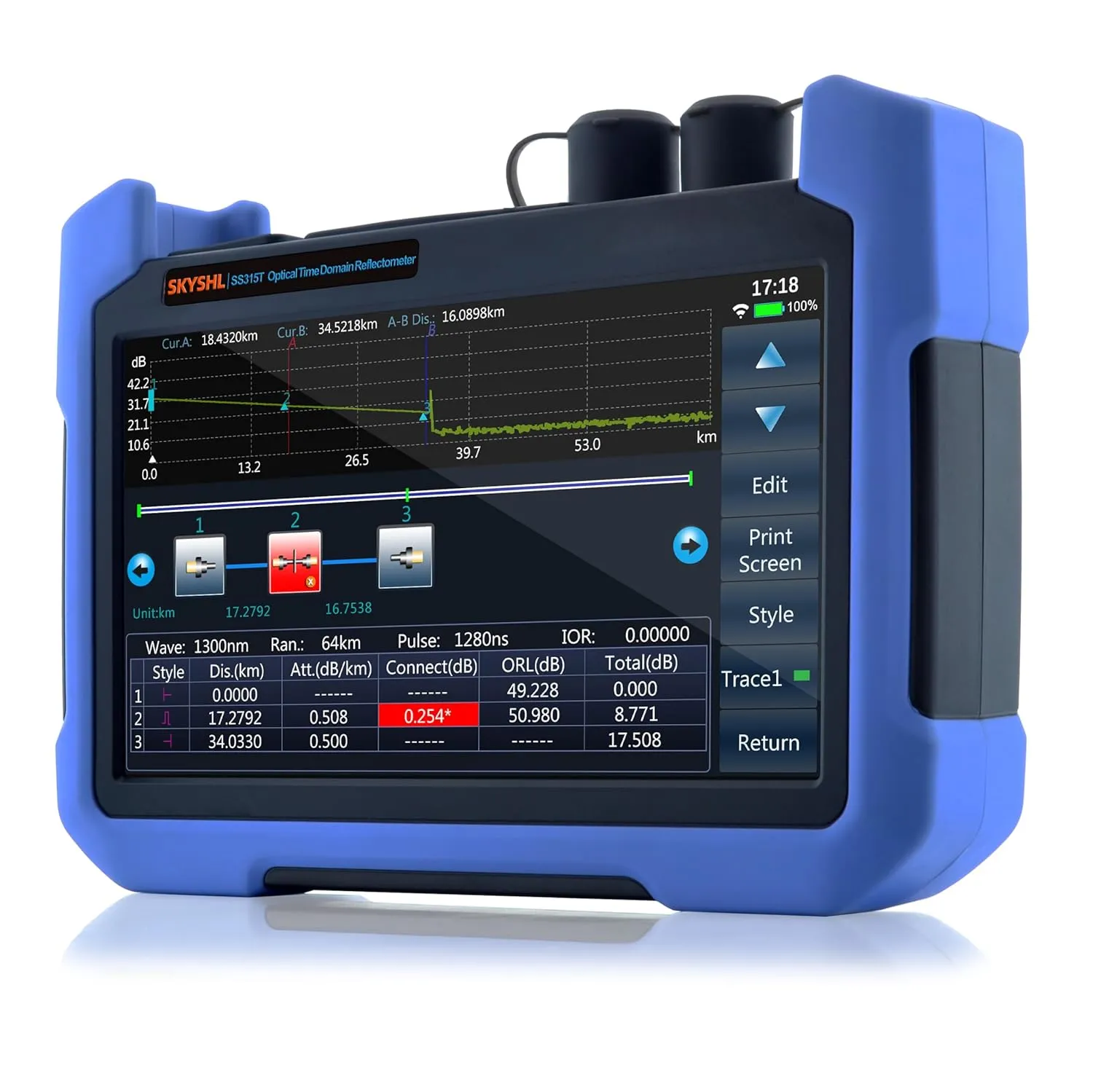

- 🏅850nm 1300nm and 29dB 37dB: SS315T-2MM1 series OTDR provides 850nm 1300nm wavelengths and 29dB 37dB dynamic range, with a maximum test distance up to 850nm-8km/1300nm-80km, and adopts high-quality light sources, advanced optical algorithms, multiple test modes, precise identification of fiber links, adjustable parameters for pass/fail analysis, and event display.

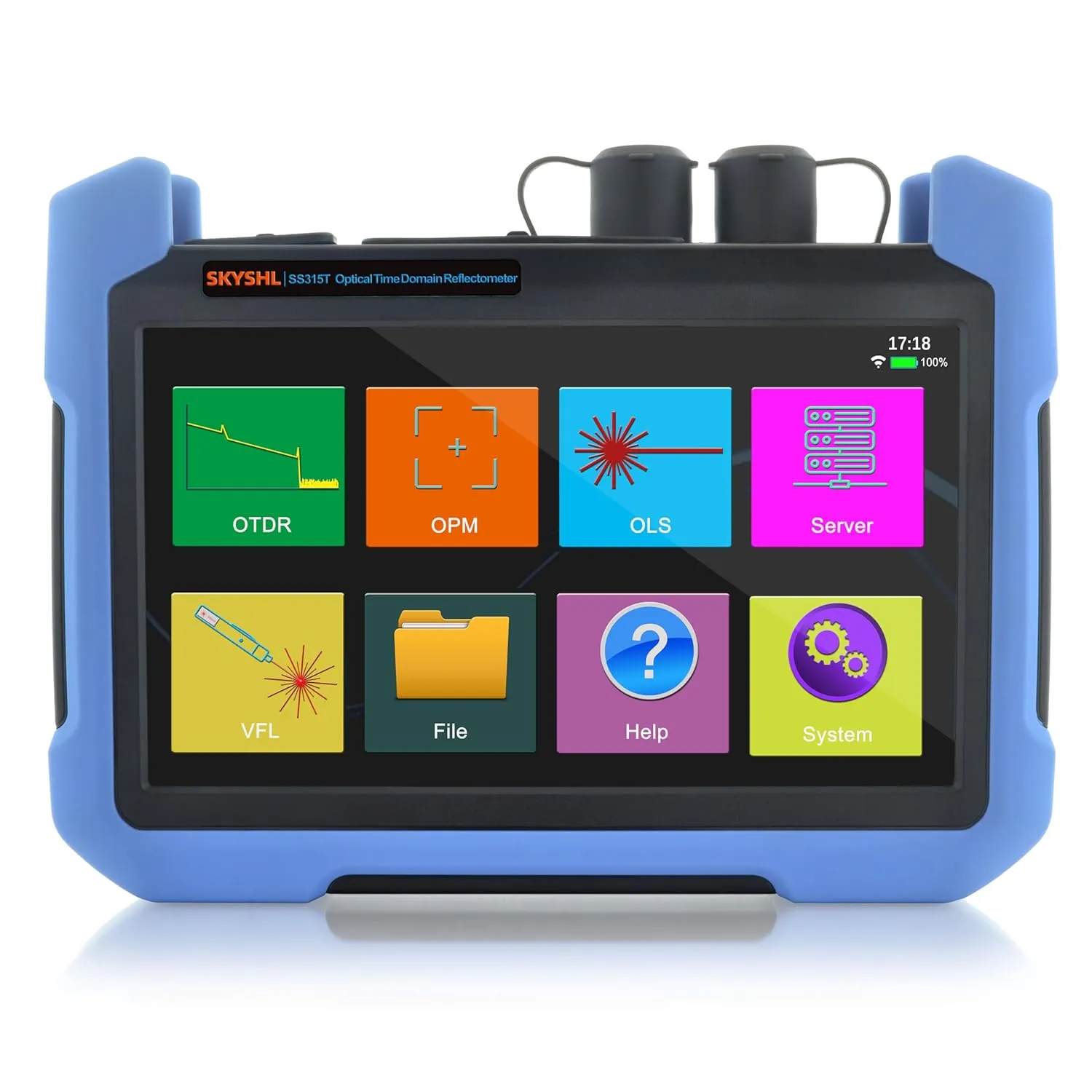

- 🏅OTDR OPM OLS VFL: SKYSHL SS315T-2MM1 combines all essential fiber tests in one handheld with Optical Time Domain Reflectometer(OTDR-850nm 1300nm/29dB 37dB),visual fault locator (650nm,10km), optical power meter (OPM-850nm~1650nm/-60~ 3dB), and Optical Light Source(OLS-850nm 1300nm).
- 🏅Extremely Short EDZ/ADZ: The SKYSHL SS315T series OTDR leverages the most sophisticated optical technology to provide the shortest event dead zone (2.0m typical for MM) and attenuation dead zone (6.0m typical for MM),This technological advancement allows SS315T OTDR to detect and measure closely spaced faults.

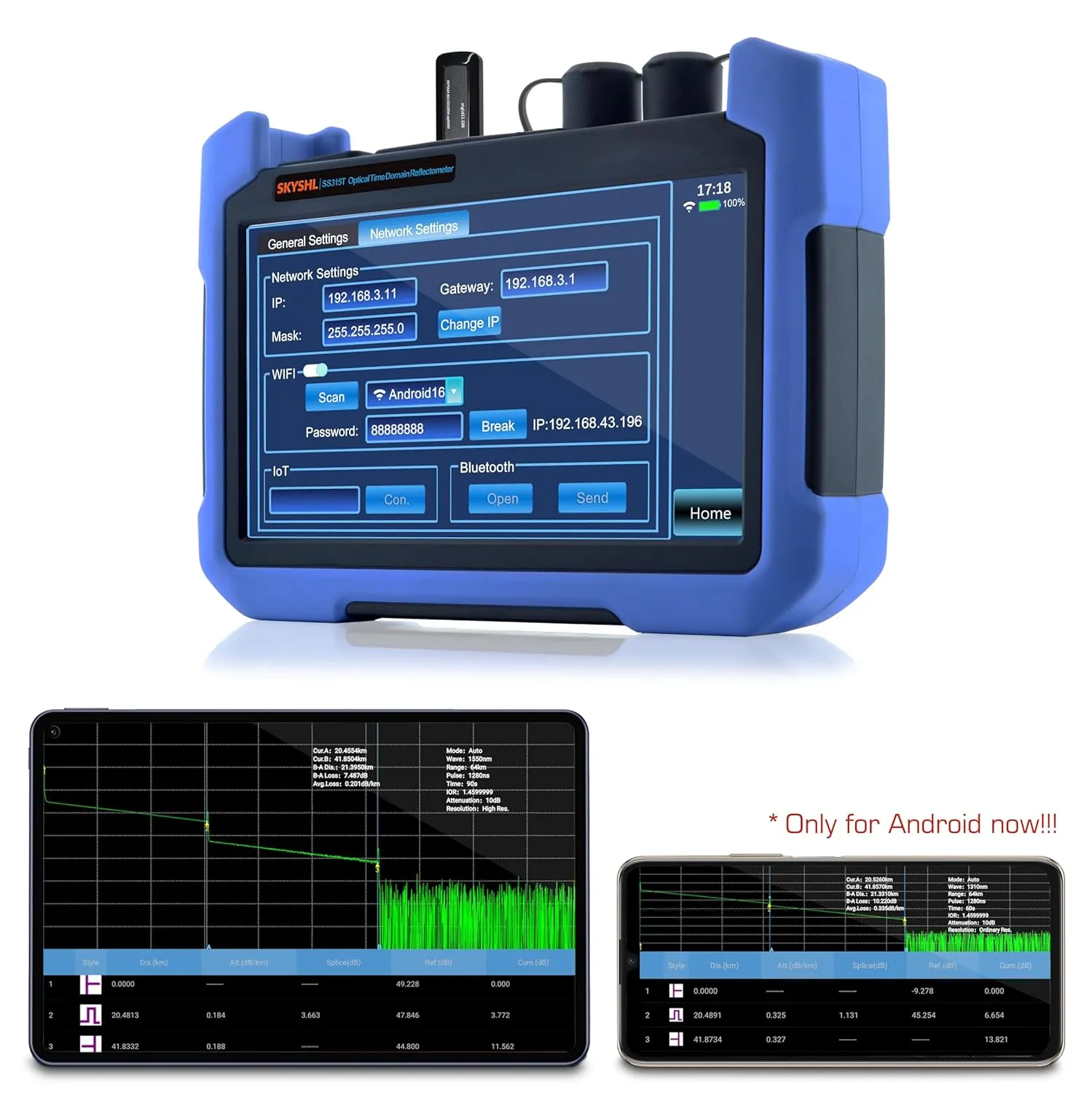

- 🏅Intelligent and Sturdy: The SS315T features automatic testing, scheduled testing, and event mapping, allowing even untrained technicians to become test experts in a short period of time. Smart APP and Windows software support OTDR connectivity to Android phones/tablets (Android only) and PCs to view, share, analyze and save test data in real time. In addition, the SS315T supports English, French, German, Spanish, Italian and Portuguese.
- 🏅Compatible with SC FC ST LC/UPC&APC: SS315T-2MM1 provides 2 fiber optic patch cords (1*MM FC/UPC-FC/UPC 1*MM FC/UPC-FC/APC) and FC-SC, FC-ST, FC-FC, FC-LC connectors. Compatible with SC/UPC, ST/UPC, FC/UPC, LC/UPC, SC/UPC and SC/APC, ST/APC, FC/APC, LC/APC.
- 🏅Feature-Rich and Quality Assurance: The SS315T-2MM1 allows data communication with a PC via USB. Meanwhile, test traces can be saved to SD card and USB flash disk.SS315T-2MM1 supports EI&SOR format, and one-click screenshot, one-click PDF generation and other functions. The professional team provides professional technical support 24 hours a day, 3-year after-sales guarantee and lifetime maintenance.
- Product Dimensions : 7.48 x 1.97 x 5.71 inches; 5.69 Pounds
- Batteries : 1 Lithium Metal batteries required. (included)
- Date First Available : November 15, 2023
- Manufacturer : SKYSHL
- Country of Origin : China
