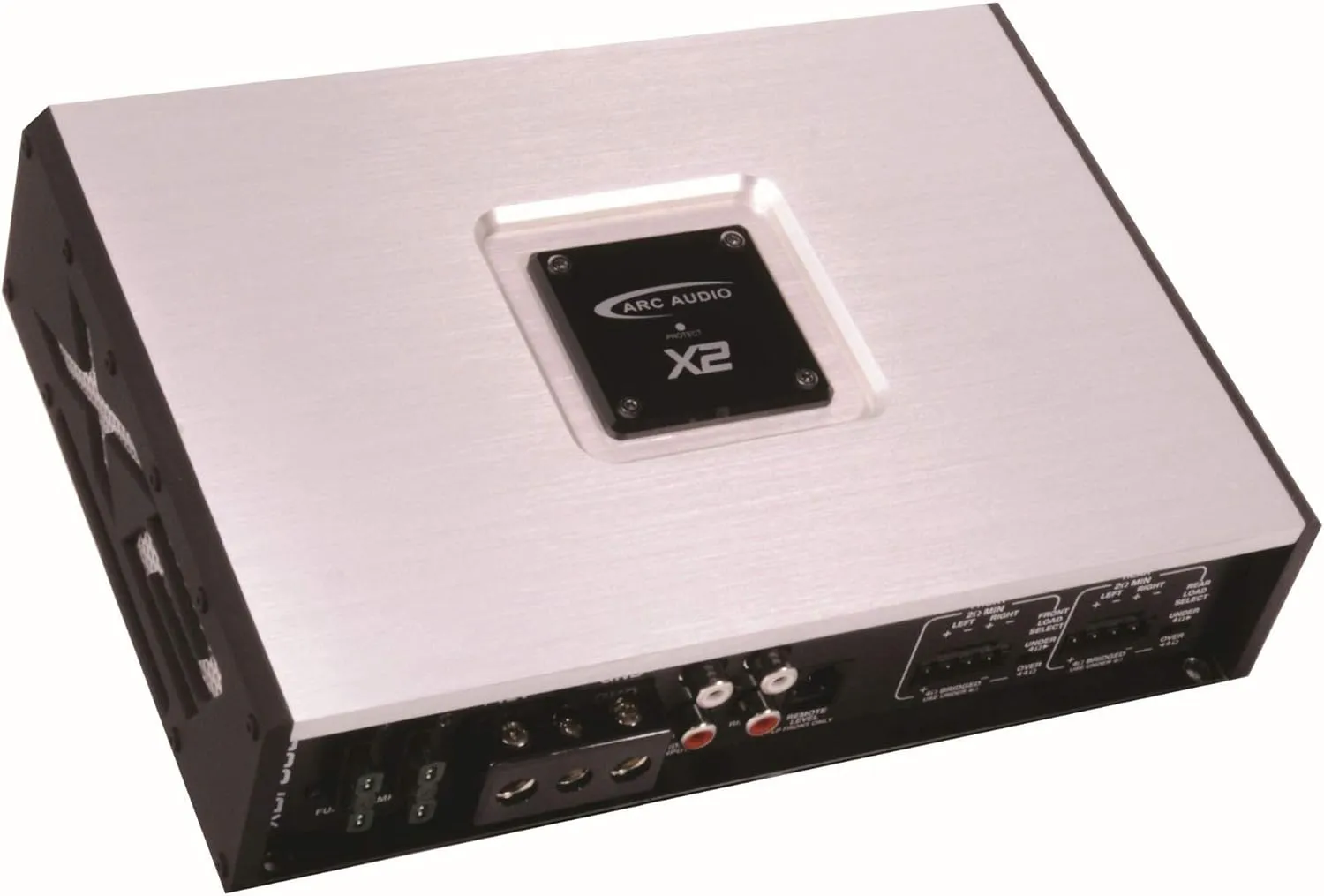

Arc Audio X2 600.4 Multi-Channel Amplifier (Four-Channels)

Multi-Channel Amplifier (Four-Channels)
Microprocessor-Controlled Class-D Design
Designed And Engineered By Robert Zeff
High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality
Remote Bass Boost Control (Included)
Extruded Aluminum CNC Chassis Design (Level 2 X2 Cosmetics)
Start-Stop Vehicle Compatible
Signal Sense and DC Detect
Single Side Connection Design
Nickel Plated RCA Terminals
Quick Disconnect Speaker Terminal Plugs
Audiophile Class-D Output Filter Networks
Detailed Microprocessor Controlled Protection
Large, High-Frequency Switching Power Supplies
RCA Inputs Are Compatible With Speaker-Level Inputs
Fault Codes Storage Of The Last Protection Code Detected
Hi Signal To Noise Ratio Without Compromising Power Output
Fully Balanced Input Stage Significantly Increases Flexibility
Ultra Low ESR, High-Capacity Power Supply Storage Capacitors
Flexible Mounting Orientation For Vertical Or Horizontal Installations
Next Generation High Speed Class-D Technology Powering All X2 Amplifiers
Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Headunits
Precision Filtering Isolates The Power Supply Reducing Unwanted Interference In Radio Reception
Quick Disconnect Type Terminal Connections

Specifications -
4- Channels @ 4 Ohms - 150 Watts
4-Channels @ 2 Ohms - 150 Watts
2-Channel @ 4 Ohms (Bridged) - 300 Watts
2-Channel @ 2-Ohms (Bridge) - Not Recommended
Frequency Response - 20Hz - 20kHz
Crossover Range - 50Hz - 550Hz
Crossover Types - HP/LP on all channels
Bandpass Crossovers - Yes Ch 3/4 Only
Remote Level Control - Yes
Remote Level Control Included - Yes - LP Front Channel only
Input Sensitivity (Low) - 200mV - 3.5V
Fuse - 2 x 30 Amp
Dimensions - 9.020"(L) x 6.268"(W) x 2.162"(H)

• Package Dimensions ‏ : ‎ 17 x 15.25 x 9.75 inches; 6.4 Pounds
• Date First Available ‏ : ‎ October 18, 2018
• Manufacturer ‏ : ‎ ARC Audio
