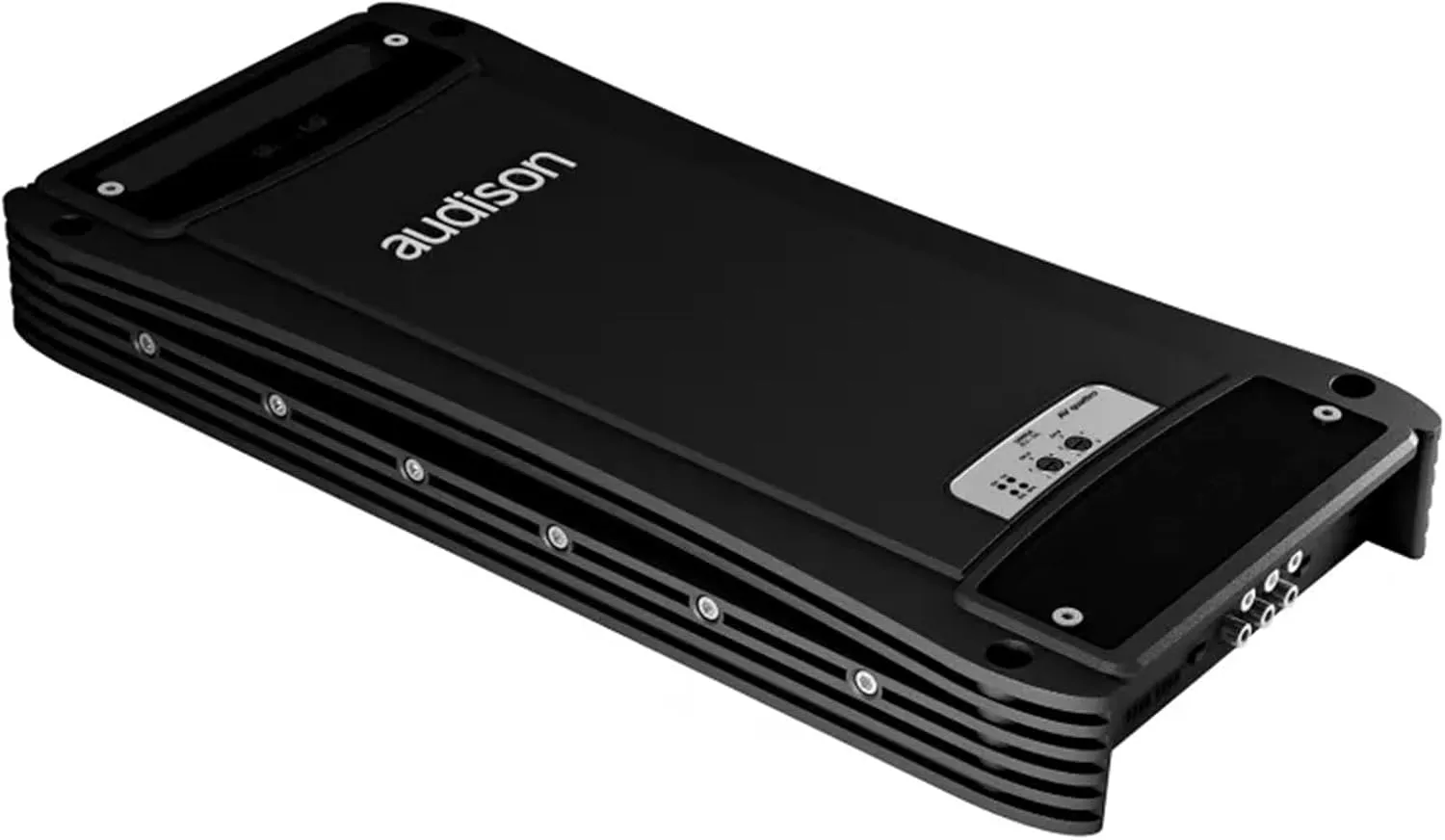

AV quattro - 4 CHANNEL AMPLIFIER 4x200W

AV quattro is a four-channel amplifier which can work in four, three, two channel mode, delivering 1700 W (RMS) power total. It is designed to handle complex configurations as front/rear and multi-channel systems. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source; up to 24 dB/Oct. slope crossovers allow to build front-rear, front-sub or multi-amplified systems while still ensuring a non-filtered output signal to expand the system.

Power Supply -
Power supply voltage: 11 ÷ 15 VDC
Idling current: 1.8 A
Idling current when off: 0.02 mA
Consumption @ 14.4 VDC (Max Musical Power): 55 A

Amplifier Stage -
Distortion - THD (1kHz @ 4Ω): 0.04 %
Bandwidth (-3 dB): 4 ÷ 60k Hz
S/N ratio (A weighted @ 1V): 100 dBA
Damping factor (1k Hz @ 4Ω): 100
Input sensitivity: 0.3 ÷ 5 V RMS
Input impedance: 15k Ω
Speaker-In sensitivity: 1.4 ÷ 24 V RMS
Speaker-In impedance: 5k Ω
Minimum load impedance: 2Ω

• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 18.5 x 2.28 x 8.66 inches; 15.87 Pounds
• Date First Available ‏ : ‎ April 13, 2014
• Manufacturer ‏ : ‎ Elettromedia
