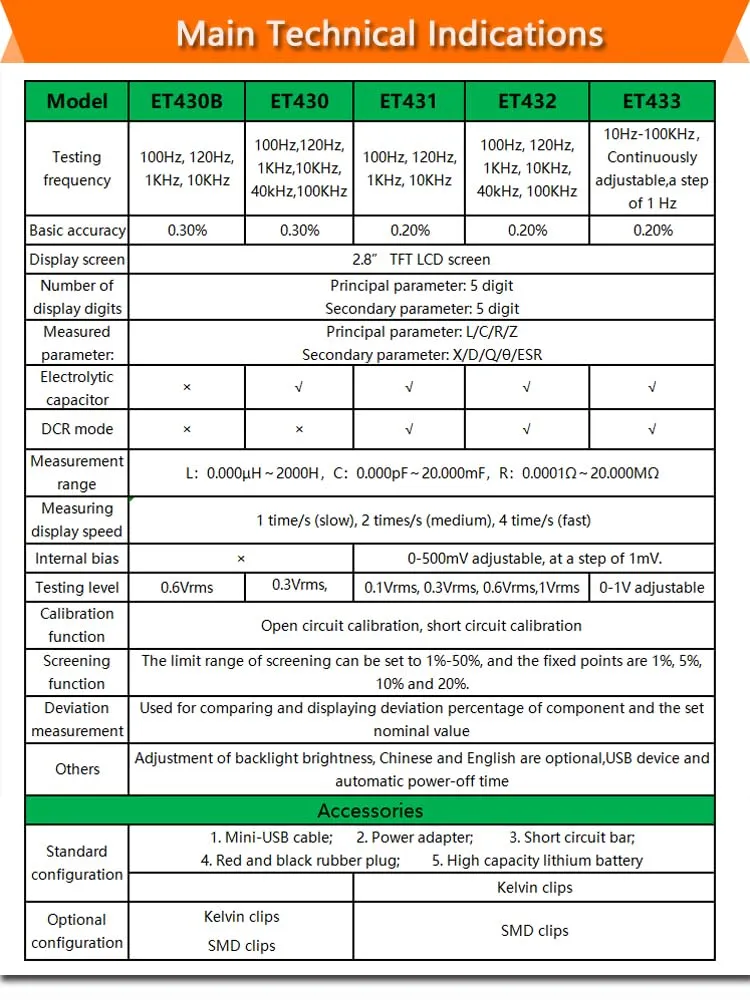

Measuring frequency up to 100kHz, continuously adjustable in 1Hz steps Support DC resistance and electrolytic capacitance measurement Internal bias voltage output 10mV-500mV Automatic recognition of component measurement Support screening and bias measurement 2.8-inch TFT display, 4.5 digits display USB communication interface Powered by large-capacity lithium battery Support SCPI protocol Provides system settings, which can configure Chinese or English, buzzer, screen brightness, etc. as needed Basic measurement accuracy 0.2% Measurement speed adjustable Manual and automatic range With open circuit and short circuit calibration function Provides a variety of test ports

• Package Dimensions ‏ : ‎ 7.28 x 3.66 x 1.85 inches; 1.43 Pounds
• Batteries ‏ : ‎ 1 Lithium Ion batteries required. (included)
• Date First Available ‏ : ‎ May 11, 2024
• Manufacturer ‏ : ‎ zhongchuang
• Country of Origin ‏ : ‎ China
