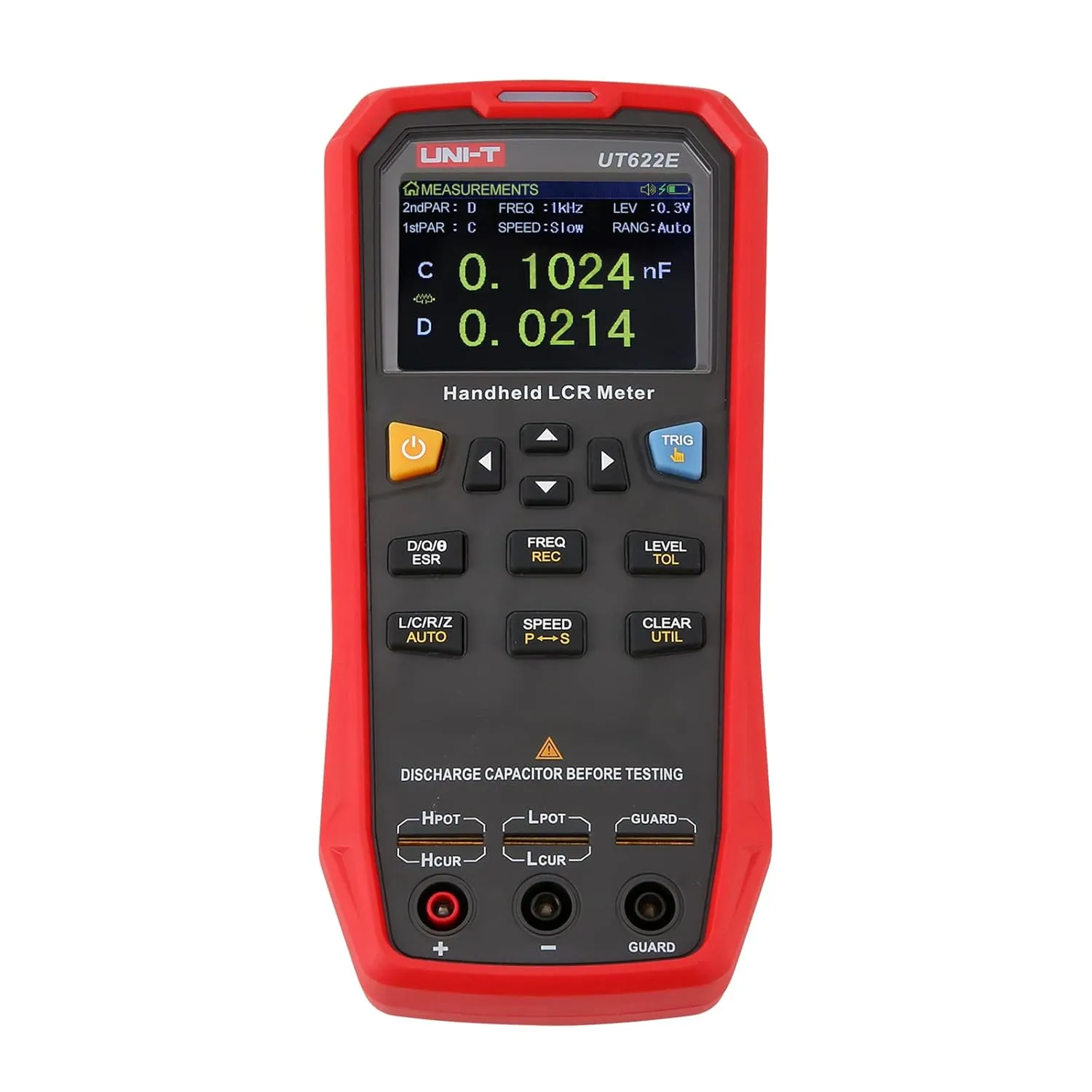

- UNI-T UT622E LCR meter. 99,999 maximum reading with high accuracy up to 0.1 %. Test frequency (100 Hz, 120 Hz, 1k Hz, 10k Hz, 100k Hz). Test signal level (0.1 Vrms, 0.3 Vrms, 1 Vrms).
- Maximum test speed: 20 times/s. Constant 100 Ω output impedance. Auto LCR. DCR test rate. Fast (20 times/s), medium (5 times/s), slow (2 times/s)
- 2.8-inch TFT LCD display. High-brightness white backlight. Data hold. Recording mode. Standard Mini-USB communication interface. SCPI command set
- Reliable & Easy to Use. Built-in rechargeable battery with large-capacity. 8h long battery life. LED alarm for tolerance. Certified CE and RoHS
- For evaluation of resistance, parameters of capacitors, inductors, magnetic cores, resistors, piezoelectric devices, transformers, chip components, network components, circuit boards, relays, switches, cables, batteries, etc
- Perfectly fit the measurement and screening of inductance, capacitance, and resistance in production lines, maintenance points,etc
- What you get: 1 x UT622E LCR meter, 1 x power adapter (5v/1a), 1 x UTR-L100k-H four-terminal Kelvin test leads (pair), 1 x UTR-001 plated short circuit board, 1 x USB cable, 1 x paper manual (En), 1 x packaging box
- Easy access to UNI-T 7/24 1 to 1 user support. If you encounter any problems during use, please contact us first (via e-mail) and our customer service team will deal with your problem as soon as it is received
UNI-T is your testing specialist.
Since1988, Uni-Trend Technology (China) Co., Ltd has been the developer, manufacturer and marketer of reliable testing, measuring and inspecting products to over 100 countries and regions globally.
What you get
1 x UT622E LCR meter
1 x power adapter (5v/1a)
1 x UTR-L100k-H four-terminal Kelvin test leads (pair)
1 x UTR-001 plated short circuit board
1 x USB cable
1 x paper manual (En)
1 x packaging box
- Package Dimensions : 9.17 x 8.86 x 2.48 inches; 1.53 Pounds
- Date First Available : July 21, 2021
- Manufacturer : UNI-T
- Country of Origin : China
